Key Features

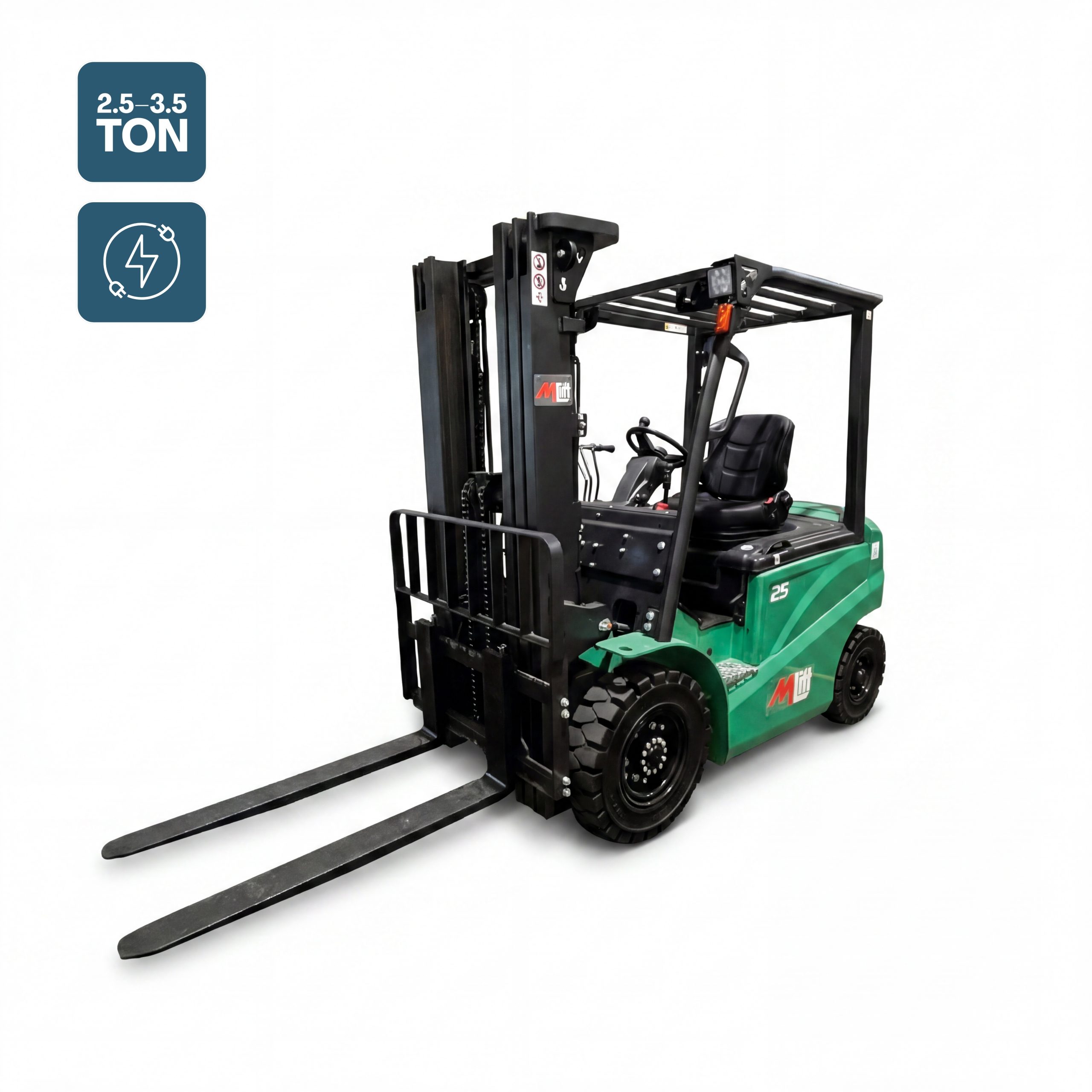

Remarkable Design and Performance The FB25-35LHUQ is built to match the mast system, axle, and chassis durability of traditional IC forklifts. The lifting motor is elevated to allow operation in areas with water or liquids on the ground. The large LED display is visible from all angles for effortless monitoring.

Seamless Operation and Visibility The truck features a long tiller with ratchet parking brake, a U-shaped steering wheel, and a multiway valve positioned at the front of the truck. The ratchet-style parking brake secures the truck on gradients of up to 15%. A customisable combination switch near the seat allows operators to set their preferred driving position.

Efficient Lithium-Ion Charging Full charge is achievable in 2–3 hours. Unlike lead-acid batteries, no battery swapping or dedicated charging zones are required. Lithium batteries carry no memory effect — they can be charged at any state without reducing lifespan. The optional automotive-style intelligent plug-in high-frequency charger offers over 95% charging efficiency, compared to 80% on traditional low-frequency chargers.

Environmentally Friendly Operation The FB25-35LHUQ produces zero carbon dioxide emissions and operates silently, making it suitable for food processing, chemical production, and pharmaceutical environments. Each truck requires only one battery regardless of the number of shifts. Lithium batteries last three times longer than lead-acid alternatives and are maintenance-free.

Specifications

Identification

Model variants: FB25LHUQ / FB30LHUQ / FB35LHUQ
Drive type: Electric (battery)
Operation type: Seated
Load capacity: 2,500 kg / 3,000 kg / 3,500 kg
Load centre distance: 500 mm
Wheelbase: 1,620 mm / 1,800 mm / 1,800 mm

Weights

Service weight (FB25LHUQ): 3,800 kg
Axle loading laden front/rear (FB25LHUQ): 5,660 / 640 kg

Wheels and Chassis

Tyre type: Pneumatic
Front tyres (FB25LHUQ): 7.00-12 12PR
Rear tyres: 6.50-10 10PR

Basic Dimensions (FB25LHUQ)

Mast tilt forward/backward: 6°/10°
Lowered mast height: 2,070 mm
Free lift: 135 mm
Lift height: 3,000 mm
Extended mast height: 3,974 mm
Overhead guard height: 2,150 mm
Seat height: 1,130 mm
Overall height: 3,568 mm
Length to fork face: 2,498 mm
Overall width: 1,150 mm
Turning radius: 2,230 mm

Performance

Travel speed (P-mode) laden/unladen: 19/20 km/h
Lift speed laden/unladen: 0.46/0.56 m/s
Lowering speed laden/unladen: <0.6 m/s
Max gradient (S2 5min): 20/28%
Service brake: Hydraulic

Electric Motor

Drive motor rating (S₂ 60min): 15 kW (FB25) / 16 kW (FB30/FB35)
Lift motor rating (S₃ 15%): 24 kW (FB25) / 26 kW (FB30/FB35)
Drive control type: AC
Battery standard: Li-Ion (LFP)
Battery voltage/nominal capacity: 76.8V / 277Ah (standard); 76.8V / 412Ah or 554Ah (option)
Battery dimensions: 770 × 600 × 680 mm
Battery weight: 240 kg

Other

Operating pressure for attachments: 17.5 MPa
Oil volume for attachments: 36 l/min
Sound level at driver’s ear (EN 12 053): 75 dB(A) (FB25) / 77 dB(A) (FB30) / 78 dB(A) (FB35)
